Camera Tầm Nhiệt Aicam BAE T5550AI-TM
Liên hệ
- Max. Image Resolution: 2592*1944
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Shutter Speed: 1/5 s to 1/100,000 s
Mô tả

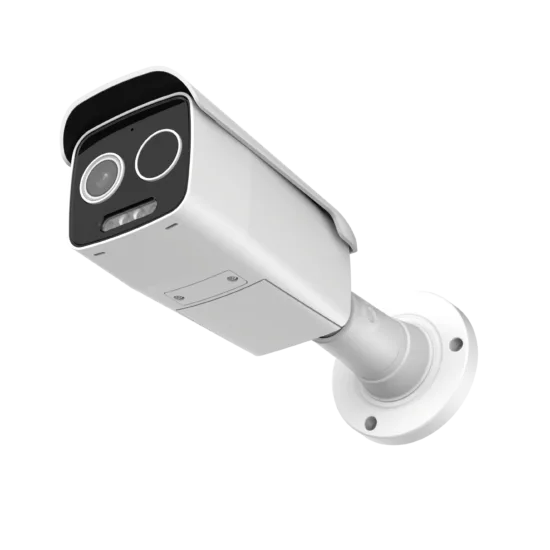

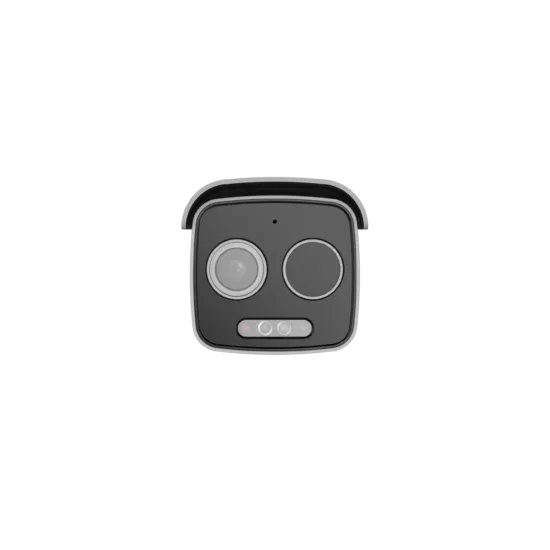

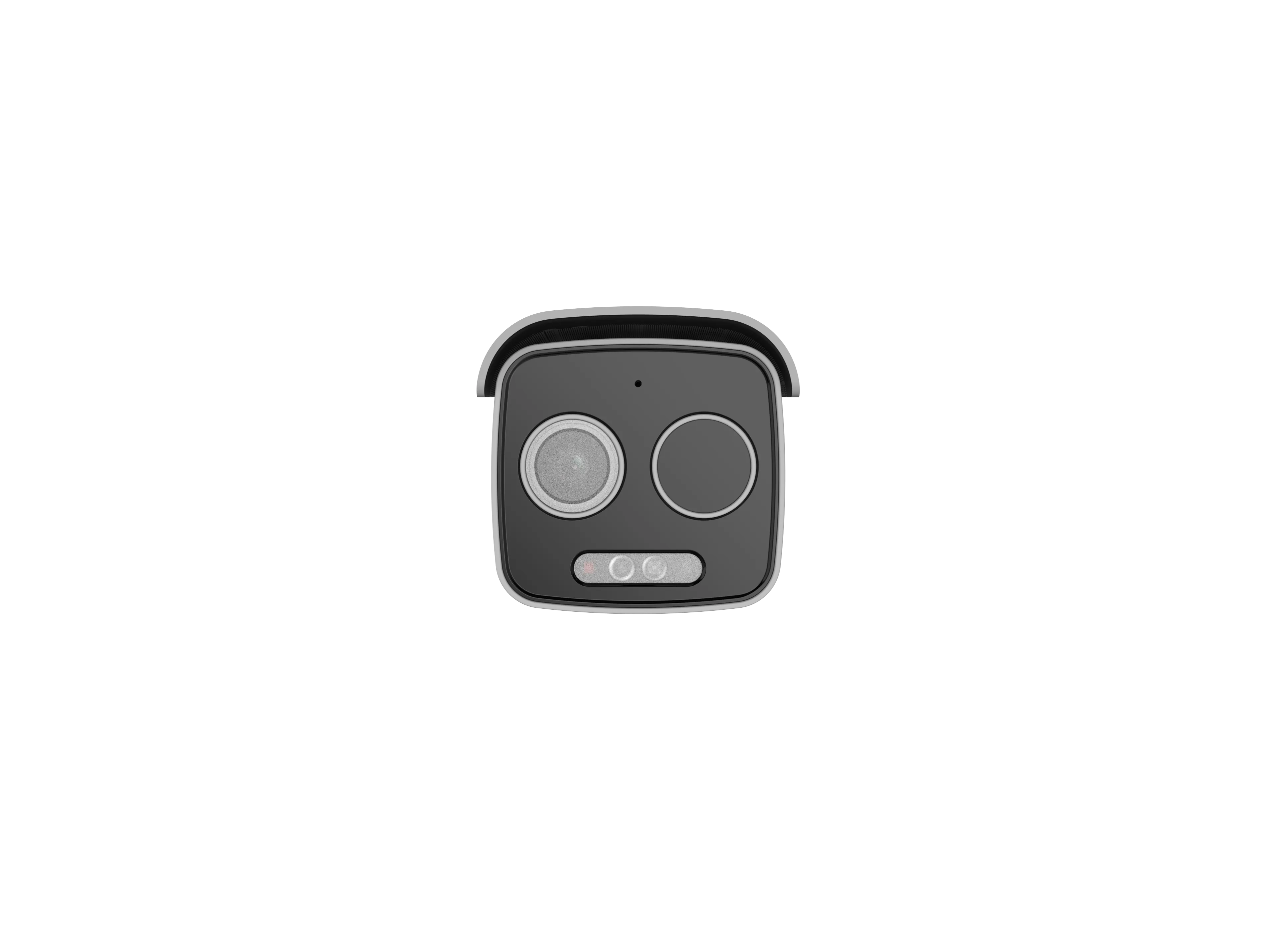

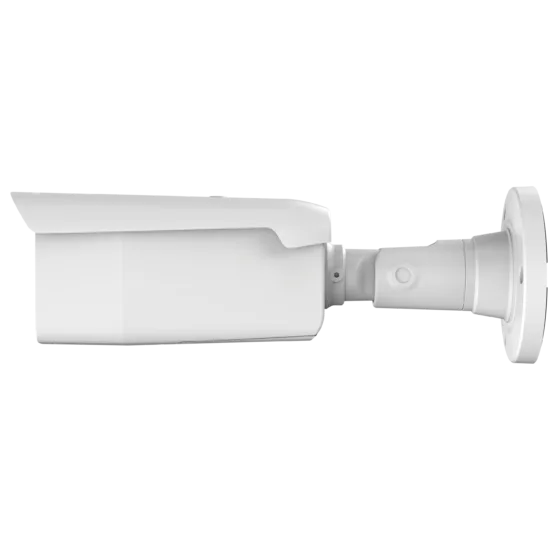

Sản phẩm : Camera Tầm Nhiệt Aicam BAE T5550AI-TM
Model | T5550AI-TM |
Specification | |
Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays. |
| Max. Resolution | 256×192 |
| Pixel Interval | 12μm. |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤ 50 mk @ f/1, 300K,30Hz |
| Lens (Focal Length) | 3.2mm. |
| IFOV | 3.75 mrad. |
| Field of View | 55.6°±2.8° (H). |
| Min. Focusing Distance | 0.5m |
| Aperture | F 1.1. |
Optical Module | |
| Max. Image Resolution | 2592*1944. |
| Image Sensor | 1/2.7″ Progressive Scan CMOS. |
| Min. Illumination | Color: 0.001 Lux @(F1.2, AGC ON), B/W: 0 @IR ON. |
| Shutter Speed | 1/5 s to 1/100,000 s |
| Lens (Focal Length) | 3.6mm. |
| Field of View | Horizontal: 81°, Vertical: 57°, Diagonal: 108°. |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch. |
Image Function | |

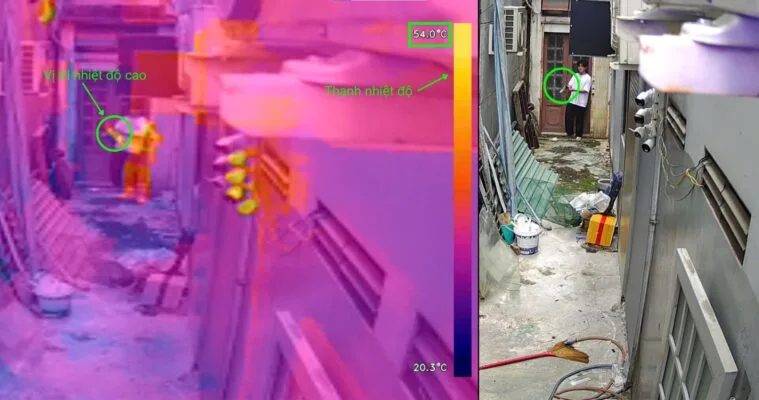

| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on opticalimage. |
Smart Function | |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
| Temperature Range | -20 °C to + 150 °C (-4 °F to + 302°F) |
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
| Fire Detection | Dynamic fire point detection, up to 10 fire points detectable. |
Infrared | |
| IR Distance | Up to 40 m |
| IR Intensity and Angle | Automatically adjusted. |
Network | |
| Main Stream | Visible Light: 50/60Hz: 25fps 5MP(2592×1944),4MP(2592×1520),3MP(2304×1296), 1080P(1920×1080), 960P(1280*960),720P(1280×720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240 |
| Sub-stream | Visible Light: 50/60Hz: 20fps 720P(1280×720),VGA(640×480),QVGA(320×240) Thermal: 704 × 576, 352 × 288, 320 × 240 |
| Mobile Stream | Visible Light: 50/60Hz: 15fps VGA(640×480), QVGA（320×240） |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.711u/G.711a |
| Protocols | IPv, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. |
| User/Host Level | 10 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, access control, IP address filtering. |
Integration | |
| Alarm Input | 1-ch inputs. |
| Alarm Output | 1-ch outputs. |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm. |
| Audio Input | 1, RCA Mic in/Line in interface. |
| Audio Output | 1-ch outputs. |
| Reset | 1, Reset Button. |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. |
| SD Memory Card | Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB) Supports manual/alarm recording. |
| Analog Video Output | NA. |
| Application Programming | API |
General | |
| Menu language | English, Russian, German, Italian, French, Portuguese, Spanish, Turkish, Japanese. |
| Power | 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3). |
| Power Consumption | TBD |
| Working Temperature/Humidity | Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 95% or less. |
| Protection Level | IP66 Standard. TVS 6000V lightning protection, surge protection, voltage transient protection. |
| Dimensions | 315*91*85mm. |
| Weight | 1330g |
